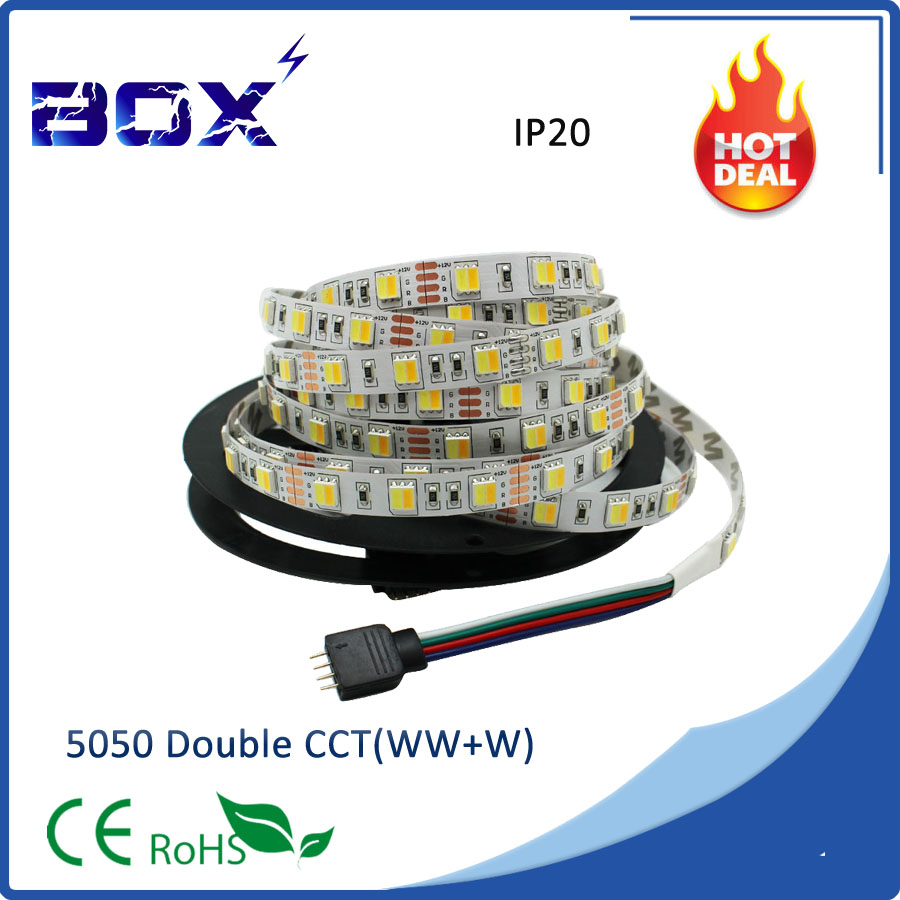

5050 WW+CW led strip

5050 WW+CW strip DC12/24V(IP20/IP65/IP67/IP68)

Product Description

Item No.	B-5050W+W-60-20
Led Source	SMD 5050
Led Q'ty	30leds/m; 60 leds/m;120leds/m
Input Voltage	DC 12/24V
Led Power	7.2W/14.4W/28.8W
Luminous Flux	18-20 lm per led
Colors	WW+CW
COntrol	/
Beam angle	120 degree
CRI	>80
Main material	FPC+SMD led + silica gel
Working temperature	-20-60°C
Lumen attenuation	less than 3‰ after 1000hours
Certifications	CE & ROHS
Size	10 mm white/black/yellow FPC board
Packing	Antistatic bag

LED Type:

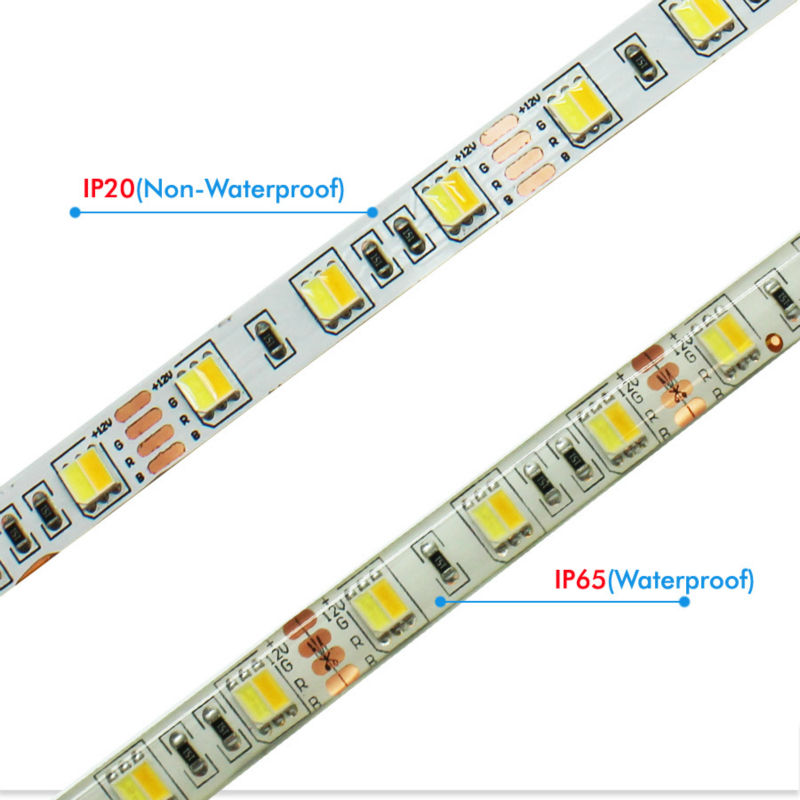

IP Grade:

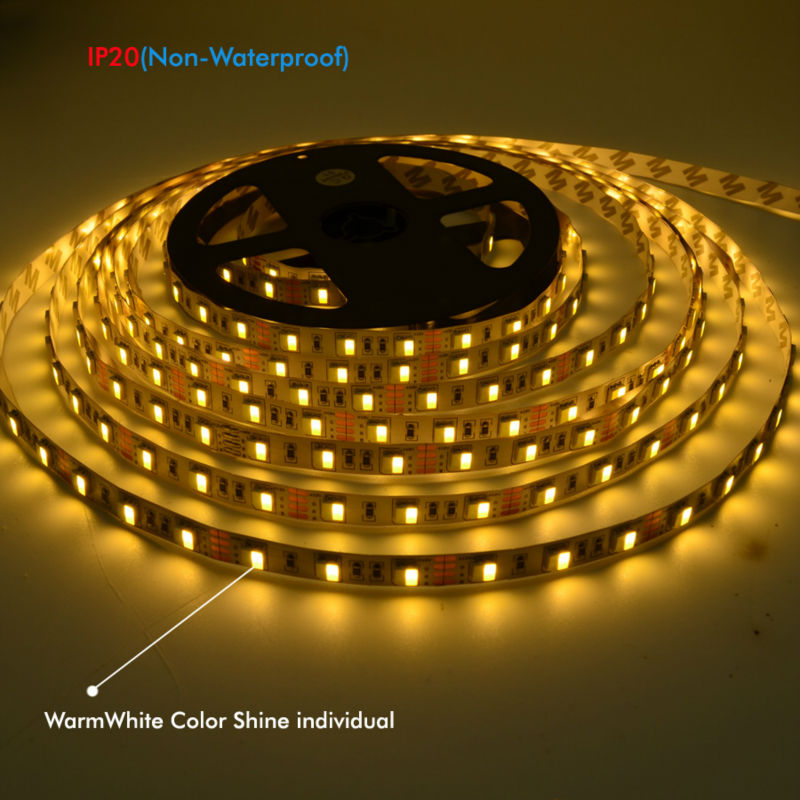

P20: non-waterproof;

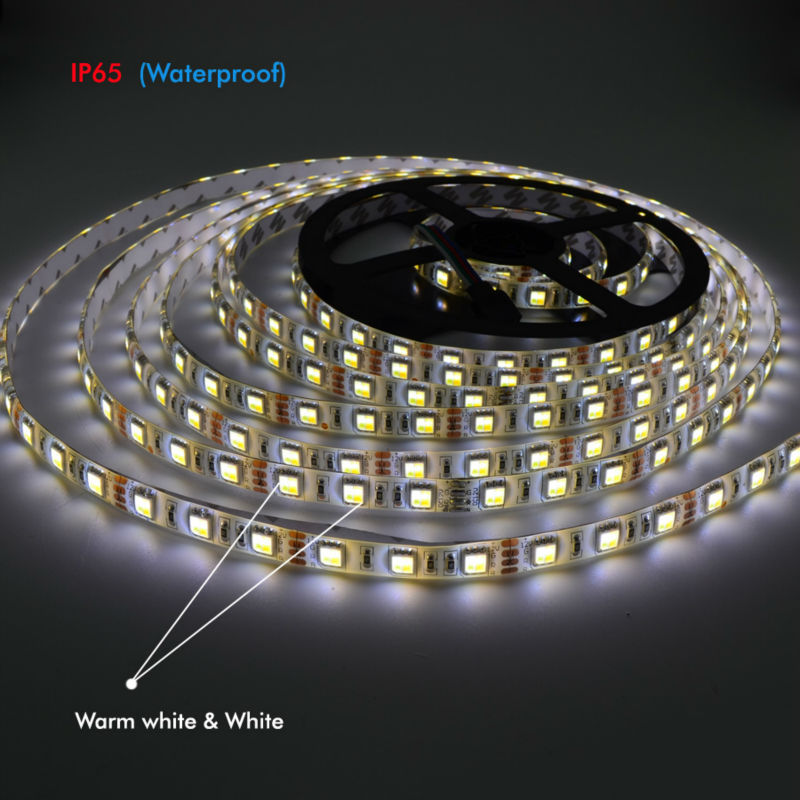

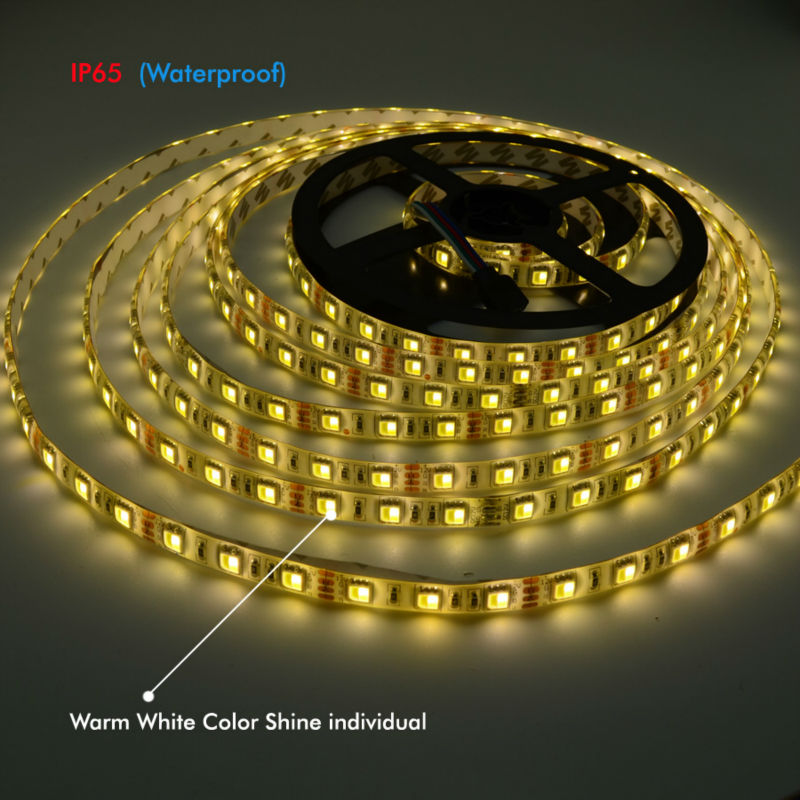

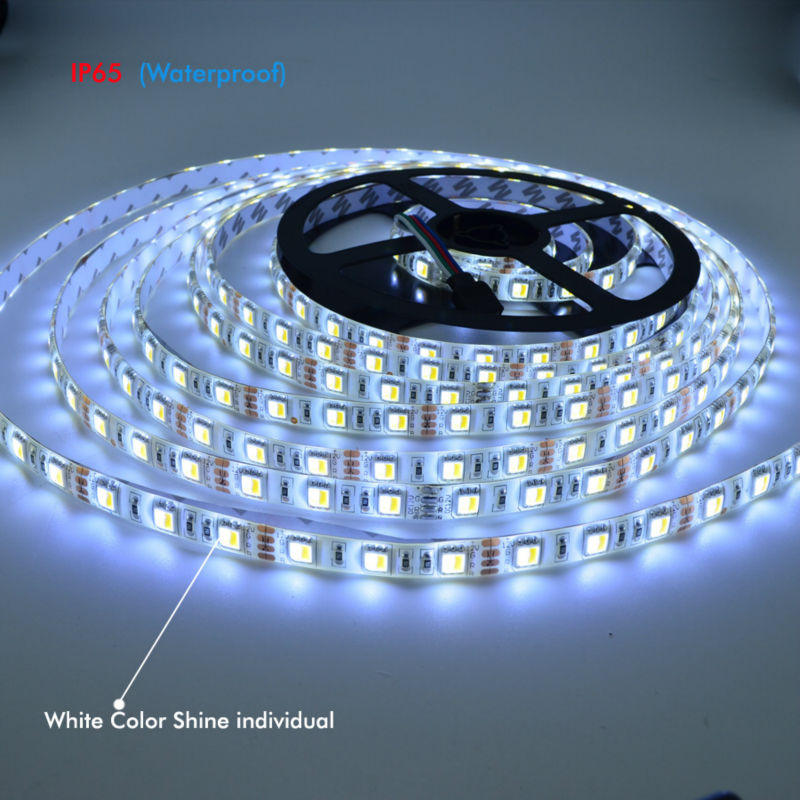

IP65: waterproof with epoxy, pu or silicon glue;
IP67: Waterproof with silicon tube;
IP68: silicon tube with glue filled in.

Installation diagram

Application:

Packaging:

Shipping:

For sample and trial order, we recommend to send by Express, for large order, we recommend to send by air or by sea, it depends on the country you are in, also the total volumn and weight of the products.

We will get the most discounted price from our forwarder to help you save the cost.
